Review curl curl identity

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111299: declare identity
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an identity.
  1. 7575859295
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
 no validation is available for declarations
2
  • 0000111935: replace curl with LeviCevita summation contravariant
  • number of inputs: 1; feeds: 0; outputs: 1
  • Replace curl in Eq.~\ref{eq:#1} with Levi-Cevita contravariant; yields Eq.~\ref{eq:#2}.
  1. 7575859295
    \(\vec{ \nabla} \times \vec{ \nabla} \times \vec{E} = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
  1. 7575859300
    \(\epsilon^{i,j,k} \hat{x}_i \nabla_j ( \vec{ \nabla} \times \vec{E} )_k = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
 recognized infrule but not yet supported
3
  • 0000111935: replace curl with LeviCevita summation contravariant
  • number of inputs: 1; feeds: 0; outputs: 1
  • Replace curl in Eq.~\ref{eq:#1} with Levi-Cevita contravariant; yields Eq.~\ref{eq:#2}.
  1. 7575859300
    \(\epsilon^{i,j,k} \hat{x}_i \nabla_j ( \vec{ \nabla} \times \vec{E} )_k = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
  1. 7575859302
    \(\epsilon^{i,j,k} \epsilon_{n,j,k} \hat{x}_i \nabla_j \nabla^m E^n = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
 recognized infrule but not yet supported
4
  • 0000111299: declare identity
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an identity.
  1. 7575859304
    \(\epsilon^{i,j,k} \epsilon_{n,j,k} = \delta^{l}_{\ \ j} \delta^{m}_{\ \ k} - \delta^{l}_{\ \ k} \delta^{m}_{\ \ h}\)
 no validation is available for declarations
5
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 7575859302
    \(\epsilon^{i,j,k} \epsilon_{n,j,k} \hat{x}_i \nabla_j \nabla^m E^n = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
  2. 7575859304
    \(\epsilon^{i,j,k} \epsilon_{n,j,k} = \delta^{l}_{\ \ j} \delta^{m}_{\ \ k} - \delta^{l}_{\ \ k} \delta^{m}_{\ \ h}\)
  1. 7575859306
    \(\left( \delta^{l}_{\ \ j} \delta^{m}_{\ \ k} - \delta^{l}_{\ \ k} \delta^{m}_{\ \ h} \right) \hat{x}_i \nabla_j \nabla^m E^n = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
 LHS diff is nabla**pdg0007930*nabla_{pdg0001552}*pdg0006238**pdg0001592*pdg0008349*(KroneckerDelta(h, pdg0007930)*KroneckerDelta(pdg0008304, pdg0009690) - KroneckerDelta(pdg0001552, pdg0008304)*KroneckerDelta(pdg0007930, pdg0009690)) + (-pdg0001552 + pdg0009690)**2*(pdg0001552 - pdg0001592)*(pdg0001552 - pdg0007984)*(-pdg0001592 + pdg0009690)*(-pdg0007984 + pdg0009690)/4 RHS diff is nabla**2*pdg0004326*(nabla - 1) - KroneckerDelta(h, pdg0007930)*KroneckerDelta(pdg0008304, pdg0009690) + KroneckerDelta(pdg0001552, pdg0008304)*KroneckerDelta(pdg0007930, pdg0009690)
6
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 7575859306
    \(\left( \delta^{l}_{\ \ j} \delta^{m}_{\ \ k} - \delta^{l}_{\ \ k} \delta^{m}_{\ \ h} \right) \hat{x}_i \nabla_j \nabla^m E^n = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
  1. 7575859308
    \(\left( \delta^{l}_{\ \ j} \delta^{m}_{\ \ k} \hat{x}_i \nabla_j \nabla^m E^n\right)-\left( \delta^{l}_{\ \ k} \delta^{m}_{\ \ h} \hat{x}_i \nabla_j \nabla^m E^n \right) = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
 Not evaluated due to missing term in SymPy
7
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 7575859308
    \(\left( \delta^{l}_{\ \ j} \delta^{m}_{\ \ k} \hat{x}_i \nabla_j \nabla^m E^n\right)-\left( \delta^{l}_{\ \ k} \delta^{m}_{\ \ h} \hat{x}_i \nabla_j \nabla^m E^n \right) = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
  1. 7575859310
    \(\hat{x}_m \nabla_n \nabla^m E^n - \hat{x}_n \nabla_m \nabla^m E^n = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
 Not evaluated due to missing term in SymPy
8
  • 0000111894: replace summation notation with vector notation
  • number of inputs: 1; feeds: 0; outputs: 1
  • Replace summation notation in Eq.~\ref{eq:#1} with vector notation; yields Eq.~\ref{eq:#2}.
  1. 7575859310
    \(\hat{x}_m \nabla_n \nabla^m E^n - \hat{x}_n \nabla_m \nabla^m E^n = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
  1. 7575859312
    \(\vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E}) = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
 recognized infrule but not yet supported
9
  • 0000111345: claim LHS equals RHS
  • number of inputs: 1; feeds: 0; outputs: 0
  • Thus we see that LHS of Eq.~\ref{eq:#1} is equal to RHS.
  1. 7575859312
    \(\vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E}) = \vec{ \nabla}( \vec{ \nabla} \cdot \vec{E} - \nabla^2 \vec{E})\)
Not evaluated due to missing term in SymPy

Symbols used in curl curl identity

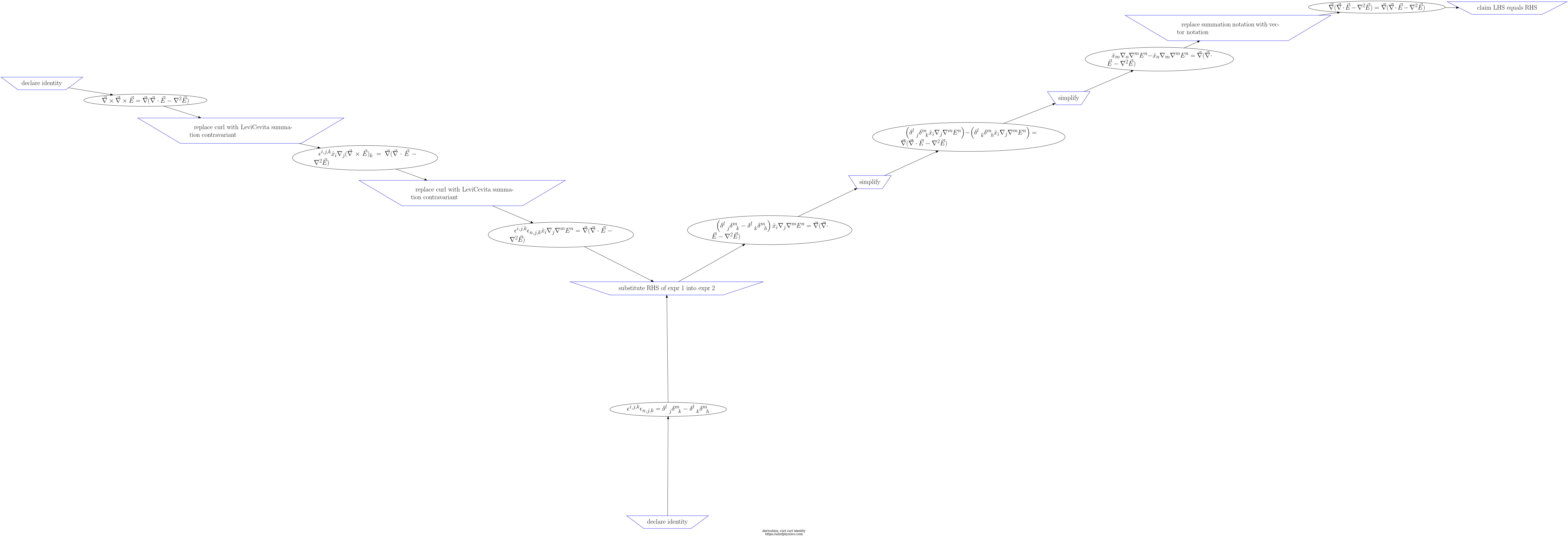

Steps and expressions for curl curl identity

d3js visualization of steps and expressions in curl curl identity


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.
